Golf courses present a complex environment when it comes to lighting design. Unlike smaller sports venues, golf courses span vast areas with varying terrain, elevation changes, and vegetation. Each hole differs in layout, requiring a tailored approach for effective illumination. The goal is not only to enhance visibility for players but also to create a visually pleasing environment that preserves the ambiance of the game while reducing glare and shadows.
Influencing Factors in Light Quantity and Placement
Several aspects affect how many lights are required to sufficiently cover a golf course. These include the total size of the course, the length and configuration of each hole, and the intended hours of operation. A driving range will need a different setup compared to an 18-hole course. Other aspects such as landscape features, nearby residences, and light pollution regulations also impact the design and number of fixtures.
The interplay between brightness and beam direction is particularly important in golf lighting. Without careful consideration, lights can overexpose certain zones while leaving others in darkness, affecting play and aesthetics.
Course Layout and Hole Orientation
The shape, length, and angle of each golf hole play a large role in how lighting must be arranged. Holes that dogleg left or right create directional challenges, requiring angled light beams that follow the line of play. Straight holes with long fairways may need elevated poles spaced farther apart, whereas holes with sharp turns or elevation changes demand more targeted coverage. Each layout variation affects not only the number of lights but also their height and beam shape. A standard layout might use symmetrical lighting, while irregular layouts introduce asymmetrical designs that call for varied placement.
Environmental and Natural Elements
Golf courses are often designed to blend with their natural surroundings, incorporating trees, ponds, hills, and sand traps. While these features enhance visual appeal, they also introduce complexity to the lighting strategy. Trees may block beams or create dark pockets unless fixtures are elevated or positioned to bypass obstructions. Water bodies reflect light, which can produce glare or uneven brightness. Elevation differences between tee boxes, fairways, and greens can cause light distortion or shadowing if not compensated for through calculated angles and pole height adjustments.
Play Schedules and Nighttime Usage
The number of fixtures required is also tied to how often and for how long the course is used after sunset. A facility that hosts nighttime tournaments or extended play during summer evenings will need consistent lighting across all 18 holes. Courses that operate only during twilight or partial hours may focus lighting on key areas such as the first nine holes or practice areas. A course designed for full-night play must meet higher standards of uniformity and luminance, leading to increased light counts and higher output fixtures. Those with limited hours can reduce fixture density without sacrificing performance.
Light Distribution Across Different Golf Course Areas
| Golf Course Area | Estimated Number of Lights | Notes |
|---|---|---|
| Tee Boxes | 36 – 72 | 1–2 lights per tee box; may share with adjacent fairway fixtures |
| Fairways | 108 – 180 | 6–10 lights per fairway depending on terrain and width |
| Greens and Approaches | 90 – 144 | 3–5 lights per green + 2–3 for approach zones |
| Pathways | 40 – 80 | 1 light every 20–30 feet along paths and walkways |
| Clubhouse and Surroundings | 20 – 30 | Includes patios, entrances, and social areas |
| Total Estimated Lights | 294 – 506 | Varies by course layout, features, and lighting goals |
Tee Boxes
Tee boxes are the first point of engagement on each hole, and their lighting must support both visibility and comfort. A well-lit tee box allows players to clearly position themselves and visualize their intended shot direction. Fixtures placed behind the teeing area ensure that the player is not facing into the light, which helps eliminate glare in their line of sight. These lights are angled slightly downward and forward, ensuring the club, ball, and immediate fairway are visible without casting heavy shadows. Pole height and beam spread are configured to minimize shadowing from the player’s own body or surrounding objects. On average, each tee box requires one to two LED fixtures, typically mounted on poles ranging from 10 to 15 feet in height.
Courses with tightly spaced holes or overlapping sightlines may use additional shared lighting from neighboring holes. In layouts with elevation or nearby tree lines, an auxiliary light per side may be added to eliminate contrast gaps or directional imbalance.
Uniformity of light is especially helpful during dusk or when teeing off from shaded or elevated positions, which can otherwise obscure ball visibility. Tee boxes near tree lines or elevation shifts may need auxiliary lights to eliminate contrast gaps.
Fairways
Fairways span the majority of a hole’s playing distance and must be evenly lit to help players track the ball in flight and locate it upon landing. These areas require broad, horizontal coverage with lights often mounted on high poles positioned along the sides of the fairway. The distance between poles is calculated to avoid dark corridors or overlapping brightness that can disorient players or interfere with ball tracking. Topographical variations like slopes, ridges, and depressions make it more difficult to achieve consistent coverage, requiring advanced beam shaping and fixture tilting.
A standard fairway, roughly 30 to 50 yards wide and 350 to 450 yards long, generally uses 6 to 10 high-mast fixtures depending on elevation and obstructions. In areas with large trees or irregular contours, an additional two to four directional lights may be installed to support uniformity. These poles are commonly spaced 80 to 120 yards apart and may stand up to 60 feet tall to cover the full horizontal span of the fairway.
Large fairways with gentle contours can be lit efficiently with fewer wide-angle beams, while complex terrain demands narrower, more focused fixtures at higher densities. Fairways flanked by tree rows, water features, or bunkers benefit from accent lighting to prevent these elements from becoming hidden hazards in low-light conditions. Some courses use dual-sided pole arrangements where symmetry is required, while others stagger pole placements to follow the hole’s flow.
Strategic placement ensures that players can locate landing zones, hazards, and pin direction as they move toward the green, reducing misreads that can disrupt gameplay.
Greens and Approaches
Lighting the green and its approach is a delicate task that blends accuracy with comfort. Unlike fairways, greens are compact areas where subtle terrain changes matter a great deal. The putting surface demands soft, evenly distributed light that allows players to judge slope, grain, and speed with clarity. Fixtures in this area are typically placed at three or four points around the green, carefully angled to minimize shadows and eliminate glare. For most greens, three to five low-glare fixtures installed on shorter poles around 20 to 25 feet high are sufficient. Larger or elevated greens may require an extra unit to maintain balanced coverage.
Approach zones, which include the 20 to 40 yards leading up to the green, also require tailored lighting to help players assess shot distance and surface quality. These transitional zones benefit from gradient lighting that slowly increases in intensity toward the green, rather than abrupt shifts. Two to three additional fixtures are typically added in this area, ensuring the green blends smoothly into the surrounding fairway lighting system.
The aim is to create an immersive, readable surface without introducing glare that might affect concentration or perception. Tall trees, mounding, or closely placed bunkers around greens can cause shadows, so fixtures must be located and oriented to neutralize these effects.

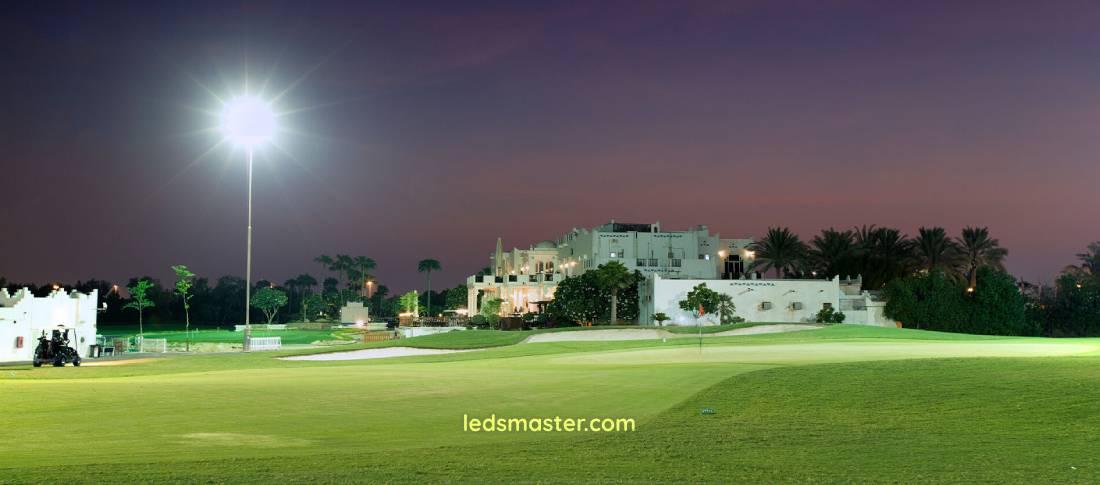

Pathways and Clubhouse Areas
While not directly related to gameplay, pathways and gathering areas contribute to the overall experience and safety of nighttime play. Walkways between holes, cart paths, and steps near tee boxes or greens must be clearly marked. These areas use smaller-scale fixtures such as bollard lights, low pole lamps, or recessed LEDs to provide low-intensity lighting without overwhelming the playing field. For full-pathway coverage, expect 1 bollard or path light every 20 to 30 feet, resulting in roughly 40 to 80 fixtures across an 18-hole course, depending on terrain and layout.
Clubhouse zones, including patios, entries, and social spaces, often blend functional and decorative lighting. These fixtures create a welcoming atmosphere while guiding movement around restrooms, pro shops, and lounge areas. Another 20 to 30 fixtures are typically used in and around the clubhouse, with a mix of pole-mounted, wall-mounted, and ground-level lights. Dimming controls and color-tuned LED systems help establish a calm, inviting environment while conserving energy.
Although smaller in scale, these non-playing areas often require a surprising number of fixtures due to their density and the variety of activities that take place there. Good lighting in these zones enhances the transition between play and relaxation and improves the overall aesthetic of the facility.
Challenges of Improper Lighting Levels on Golf Courses
Too Many Lights
When a golf course is illuminated with an excessive number of lights, the environment can become overwhelmingly bright and visually uncomfortable. Over-illumination often results in glare, which interferes with a player’s ability to track the ball in flight or accurately judge distances. This glare not only reduces visibility but also causes eye strain and fatigue, which may diminish player performance over the course of a round.
Too much light can also disrupt the natural character of the course. Golf courses are appreciated not only for their sporting challenge but for their scenic beauty. Excessively bright lighting can detract from the ambiance, creating a harsh, artificial atmosphere that feels out of place in the natural surroundings. In addition, the presence of too many fixtures increases energy consumption and operational expenses, putting added strain on facility resources.
Beyond the course itself, over-illumination contributes to light pollution, which can have wider environmental and social impacts. Nearby residents may experience light trespass, where unwanted light spills into homes, affecting comfort and privacy. Wildlife, especially nocturnal species, can have their natural cycles disrupted by unnatural lighting levels. Managing the number and placement of fixtures carefully helps prevent these negative effects while preserving the quality of play.
Too Few Lights
Insufficient lighting creates a distinct set of challenges that impact both gameplay and safety. When critical areas such as fairways, greens, or tee boxes are underlit, shadows and dark spots can obscure the ball or important terrain features. This makes it difficult for players to properly assess shot distance, read the contours of the landscape, or follow the ball during night or low-light conditions.
Uneven or dim lighting can cause sudden contrasts that interfere with depth perception, making it harder to judge slopes or avoid hazards. Additionally, poorly lit pathways, cart routes, and walkways increase the risk of accidents or injuries, particularly when players move between holes in fading light. These issues can reduce overall enjoyment and discourage use of the course during evening hours.
From a management perspective, inadequate lighting limits the operational hours of the facility, reducing opportunities for revenue from night play or extended sessions. Players may also feel less confident and comfortable, potentially impacting the course’s reputation. Balancing coverage and intensity ensures that all areas are adequately visible without the drawbacks caused by excessive brightness.

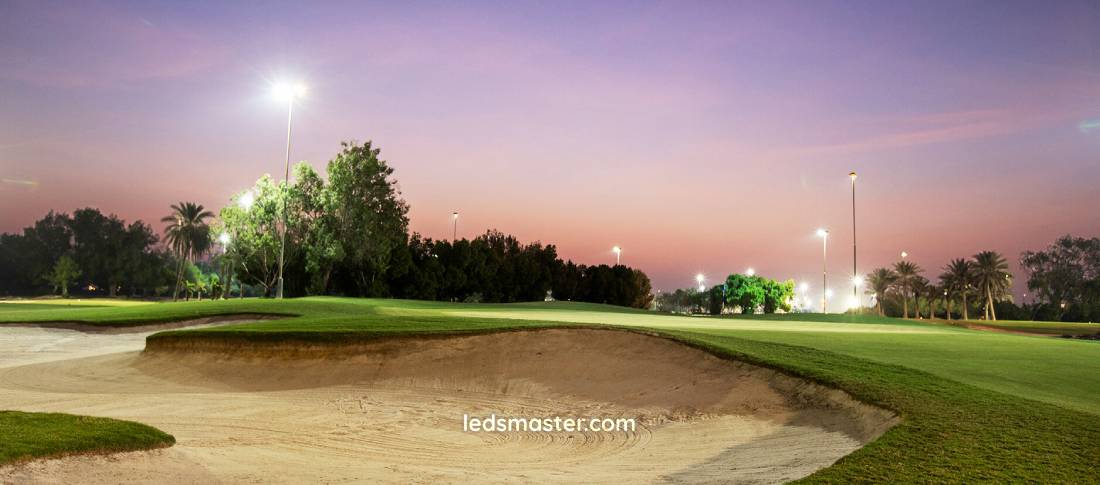

Typical Lighting Requirements for a Standard Golf Course
A standard 18-hole golf course may demand anywhere from 200 to 400 high-intensity LED fixtures, depending on layout, terrain, and desired lighting uniformity. Some clubs choose to illuminate only a few holes, practice greens, or the driving range, especially when full-course night play is not a primary objective. Others pursue comprehensive coverage, lighting all playing surfaces to enable tournaments and recreational rounds during evening hours. The scale of lighting depends not only on hole length and course complexity but also on how frequently play occurs after sunset.
Role of Fixture Efficiency in Light Planning
Modern golf lighting systems typically rely on advanced LED technology. These fixtures deliver higher lumens per watt than legacy metal halide or halogen lamps. As a result, fewer units may be required to reach similar brightness levels. However, that does not eliminate the need for thoughtful distribution. LEDs provide directional control and better beam uniformity, allowing lighting engineers to direct light exactly where it’s needed. This reduces wasted energy and limits unintended spill light into non-playing areas or adjacent properties. Despite the higher upfront cost of LED systems, their longevity and precision often justify the investment.
Design Considerations to Prevent Overlap and Shadows
Careful alignment of fixtures is just as vital as selecting the right number. Lighting that is too concentrated in one area can create glare or bright spots that hinder visibility rather than enhance it. Conversely, sparse distribution leads to dark patches, making it difficult for players to track the ball or navigate the terrain. Designers often rely on advanced lighting simulation software to evaluate beam angles, pole heights, and reflector patterns before any physical installation occurs. These tools help model real-time effects across tee boxes, fairways, and greens to ensure a balanced and functional lighting experience throughout the course.
Courses that feature elevation changes, dense tree cover, or water features may require additional fixtures to resolve visual blind spots. While the number of fixtures is an important metric, the effectiveness of a golf course lighting system depends greatly on how those fixtures are spaced and oriented across the landscape.

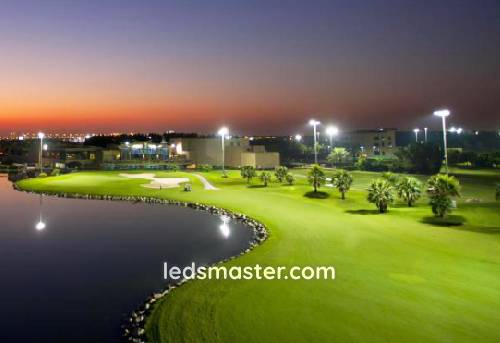

Technological Advances in Golf Course Lighting
Lighting technology for golf courses has evolved rapidly in recent years, with LED systems becoming the standard for both new installations and retrofits. These modern fixtures offer distinct advantages over legacy lighting options such as metal halide, halogen, and high-pressure sodium lamps. At the forefront of this transformation is the capability of LEDs to deliver targeted illumination while minimizing wasted energy and maintenance costs. Their efficiency has enabled course designers to rethink how light is applied across tee boxes, fairways, greens, and non-playing areas.
Greater Control Through LED Flexibility
LED lighting fixtures allow for granular control of several parameters, including brightness, beam spread, and color temperature. This flexibility means that each light can be calibrated to suit its specific placement—whether it’s a wide-angle beam over a fairway or a tightly focused light directed at a putting green. Such adaptability leads to higher-quality illumination with fewer blind spots and a more natural appearance, closely mimicking the visibility conditions of daytime play. The ability to adjust beam angle and intensity also helps minimize glare and shadow formation, two common issues with older lighting systems.
Integration of Smart Lighting Systems
Today’s LED systems often include smart features like dimming controls, time scheduling, and motion sensors. With smart controls in place, certain areas of the course can remain dim or turned off until motion is detected—such as a group approaching a tee or green. This not only conserves electricity but also extends the life of each fixture by reducing unnecessary runtime. Courses can also automate lighting sequences for events or stagger lighting in areas not constantly in use, like practice facilities or pathways. Remote monitoring systems make it possible to oversee the status of fixtures, perform diagnostics, and make real-time adjustments, often from a centralized control panel or even a mobile device.
Durability and Reduced Maintenance Requirements
One of the most attractive features of LED lighting for golf courses is its longevity. Unlike traditional lamps, which often require frequent replacement and suffer from lumen depreciation, LED fixtures can last tens of thousands of hours without a drop in performance. Their sealed construction and durable housings are designed to withstand harsh weather conditions, including rain, heat, and wind. This resilience reduces the frequency and cost of maintenance operations, which is especially helpful for fixtures installed on high poles or remote areas of the course.
Impact on Light Quantity and Fixture Layout
Because of their efficiency and superior optical control, LED systems can reduce the total number of fixtures required for effective coverage. A single LED unit can often replace two or more traditional lamps without sacrificing light quality. This directly impacts the overall lighting plan and can translate into savings on installation labor, infrastructure, and long-term energy use. Fewer poles, cables, and control systems may be needed, simplifying project execution and reducing the environmental footprint of the lighting infrastructure. Additionally, the precision of LED technology helps ensure light is directed only where it is useful, improving both performance and compliance with dark-sky regulations.
The convergence of performance, efficiency, and intelligence makes LED systems a natural fit for golf course lighting today. As these technologies continue to evolve, courses can expect even more refined control, better sustainability, and improved user experience on and off the playing field.
Design Considerations for Light Pollution and Glare Control
Golf course lighting must strike a balance between functionality and environmental awareness. While the goal is to provide excellent visibility for players and spectators, uncontrolled light emissions can lead to adverse effects such as skyglow, glare, and disruption to nearby ecosystems or residential areas. These issues become more pronounced when a course is situated in or near urban settings, where artificial light sources already dominate the landscape. Introducing powerful floodlighting without careful control can compound problems, from disturbing local wildlife to frustrating neighboring property owners.
To address these concerns, lighting designers employ a variety of methods aimed at focusing illumination precisely where it is required. Shielding fixtures, angling lights correctly, and applying cutoff optics help ensure that upward and lateral light spillage is minimized. Fixtures are often mounted at calculated heights and aimed downward with tightly controlled beam angles. Proper fixture orientation can dramatically reduce glare and limit the reach of light beyond the course perimeter, protecting both players’ vision and community comfort.
Courses located in suburban or environmentally sensitive areas are typically subject to strict lighting codes or environmental guidelines. These may include restrictions on the amount of permissible uplight, glare thresholds at property boundaries, and curfews for nighttime operation. Compliance is not only a regulatory requirement—it also reflects a growing awareness of sustainable land use. To meet these expectations, courses may incorporate low-glare luminaires, motion sensors, and smart lighting controls that allow specific zones to be illuminated only when needed.
The role of optics in modern lighting cannot be overstated. Directional LEDs with narrow-beam lenses allow light to be cast exactly over tee boxes, greens, or pathways, without oversaturating adjacent terrain. This level of control also supports lower energy consumption, as fewer fixtures are needed when illumination is highly targeted. By ensuring illumination reaches only where it’s needed, courses reduce operating costs while maintaining a more pleasant visual environment for players and spectators alike.
Beyond technical design, environmental assessments and light audits play a vital role in responsible lighting deployment. These evaluations often occur before and after installation. During planning, audits help determine where and how much light is required for specific areas, using simulation software and terrain models to predict spill patterns. After installation, site tests verify whether real-world light behavior aligns with the original design, and adjustments are made to correct any deviations.
These assessments are particularly valuable for courses located near protected land, wetlands, or migratory zones. In such areas, even low levels of excess light can interfere with nocturnal wildlife behaviors or plant cycles. By taking these conditions into account during design, course operators demonstrate stewardship and avoid long-term ecological consequences. In cases where lighting must be reduced during off-peak hours, dimming systems are integrated to automatically lower intensity, conserving energy and further limiting the environmental footprint.
Ultimately, lighting for golf courses is no longer about simply flooding the area with brightness. It is about precision, efficiency, and harmony with the surrounding world. Whether the goal is to preserve the night sky, comply with municipal rules, or minimize habitat disruption, thoughtful lighting design plays a central role in modern golf course development.
Energy Use and Fixture Efficiency
The total number of lights required for a golf course is closely linked to the wattage and luminous efficiency of the fixtures selected. Modern high-lumen LED fixtures can produce light outputs that far exceed traditional lamps, often delivering the same brightness as two or even three lower-output units. This increase in efficiency allows course designers to reduce the overall number of fixtures installed without compromising the quality or consistency of illumination across playing areas.
Energy efficiency is not only about the number of lights but also about selecting fixtures that optimize the conversion of electrical power into usable light. Higher-quality LED luminaires feature advanced optics that focus light precisely where it is needed, minimizing wasted energy that would otherwise illuminate non-essential areas. The use of such fixtures contributes to a reduction in operational costs and lowers the facility’s environmental footprint.
Golf courses seeking to manage long-term expenses often choose to invest more upfront in cutting-edge lighting technology. While the initial capital expenditure for high-performance LEDs may be greater, these systems offer substantial savings through decreased electricity usage and less frequent maintenance needs. Moreover, efficient fixtures reduce heat generation, contributing to a cooler and more sustainable environment on the course.
By prioritizing fixture efficiency and power management, course operators can achieve a lighting solution that balances visual quality with responsible energy consumption, enhancing both player experience and economic sustainability.
Impact of Fixture Wattage on Course Design
Fixture wattage plays a significant role in determining both the lighting layout and the total number of lights required. Higher wattage fixtures emit more light per unit but also consume more power, which can affect electrical infrastructure and ongoing energy costs. Selecting the right wattage involves balancing brightness needs against power consumption, ensuring that each fixture contributes effectively without creating excessive glare or hot spots.
For example, a single high-wattage LED fixture might replace multiple lower-wattage units, simplifying installation and maintenance. However, careful planning is needed to ensure that light distribution remains even and that elevated brightness in one area does not overshadow other sections of the course. Adjusting wattage per zone can optimize energy use—brighter lights on key playing areas like greens and tee boxes, with lower wattage fixtures used for fairways and pathways.
Advances in Smart Lighting Controls
Modern golf course lighting systems increasingly incorporate smart control technologies that enhance fixture efficiency and reduce energy waste. These include dimming capabilities, motion sensors, and programmable schedules, which adjust lighting levels dynamically based on activity and time of day. Such controls allow courses to operate lights at full brightness only when needed, for instance, during play, and to dim or turn off lights during periods of inactivity.
Integration with centralized control platforms enables facility managers to monitor energy consumption in real-time, set automated routines, and respond promptly to equipment issues. This level of control not only reduces electricity costs but also extends the lifespan of fixtures by avoiding unnecessary operation. Smart lighting technologies therefore contribute to sustainable management practices while maintaining optimal visibility across the course.
Working with Lighting Designers and Engineers
The process of determining the optimal number of lights for a golf course is a complex task that benefits greatly from collaboration with lighting professionals. Engineers and designers utilize sophisticated software tools such as DIALux, AGi32, and others to create detailed simulation models of the course lighting layout. These programs allow for precise calculation of factors like brightness uniformity, glare, pole heights, beam angles, and light spill, providing a virtual preview of how the lighting system will perform under real-world conditions.
Using these simulation tools, designers can experiment with different fixture types, wattages, mounting heights, and placement patterns to refine the lighting plan. This iterative approach enables the identification and resolution of potential issues before installation begins, such as overlapping hotspots that cause glare or poorly lit zones that might affect play. It also helps to ensure compliance with local regulations related to light pollution and environmental impact.
Lighting designers also incorporate site-specific elements into their models, including natural terrain features, existing vegetation, and nearby residential areas. By considering these variables, they can recommend fixture arrangements that maximize effectiveness while minimizing unwanted light trespass and ecological disruption.
This detailed planning process results in a lighting infrastructure that is precisely tailored to the unique requirements of each golf course, enhancing performance, player safety, and operational efficiency.
Conclusion
Designing an effective lighting plan for a golf course involves far more than counting how many lights are needed. The diversity in terrain, size, and layout across each facility means there is no single fixture count that fits all. Courses must evaluate each playing surface, from tees to greens, to ensure lighting supports clear visibility, gameplay comfort, and environmental considerations. Advances in LED technology offer the chance to reduce the number of fixtures while improving performance and efficiency. The use of simulations and expert consultations helps determine fixture placement, beam angles, and coverage strategies tailored to specific needs. Thoughtful planning, smart fixture selection, and careful balancing of light levels can provide a golf course with the illumination it requires, without overuse of resources or disruption to its natural surroundings. By focusing on precision, control, and efficiency, it becomes possible to illuminate an entire course effectively using only the lights that truly serve a purpose.
