The number of fixtures needed varies depending on several elements, such as the location of the court (indoor or outdoor), the level of play, and how the light poles are configured. High-quality lighting is not only about meeting lux requirements but also about enhancing the playing experience and ensuring clear visibility under all conditions.
Lighting Requirements Based on Level of Play
Lux Levels and Visibility Standards
| Court Classification | Level of Play | Lux Range (lx) | Typical Fixture Count | Common Pole Layout |
|---|---|---|---|---|
| Class III | Recreational / Club | 300–400 | 4–8 | 4- or 6-pole (1–2 lights/pole) |
| Class II | High School / Collegiate | 500–750 | 8–16 (up to 24 shared) | 4- or 6-pole (2–4 lights/pole) |
| Class I | Professional / Broadcast | 1000–1500 | 50–100 | Roof-mount or perimeter poles |
| Indoor Courts | Controlled Environment | 300–750 | Fewer fixtures needed due to enclosure | Ceiling grid or suspended |
| Outdoor Courts | Uncontrolled Environment | 400–1000+ | Higher count, weatherproof | 4- or 6-pole, weather-rated fixtures |
The intended level of play on a tennis court has a direct effect on the lighting design, particularly when it comes to lux levels, which measure the intensity of light on the playing surface. A court used for recreational or casual purposes generally demands lower lux levels, often around 300 lux, which is sufficient to provide decent visibility for relaxed, social matches where speed and precision are less of a concern.
However, as the intensity of play increases, so do the lux requirements. Competitive matches, especially at the collegiate or amateur tournament level, call for brighter lighting to support faster gameplay. In these settings, players need to track the ball more quickly and react more precisely, which can only be achieved when the court is evenly and brightly lit.
At the professional level, lux requirements are even higher. Tennis tournaments held in professional arenas typically require lighting levels of 750 lux or more. This brightness level ensures that players can clearly follow the ball during rapid rallies and also helps officials and spectators maintain clear visual contact with the action. Additionally, higher lux levels are vital for broadcast-quality lighting, enabling television cameras to capture fast movements without motion blur or dark spots.
Fixture Quantity by Tennis Court Classification
The number of lighting fixtures needed for a tennis court is also heavily influenced by the level of competition. As lux levels increase, so does the number of fixtures required to achieve that intensity without creating glare or uneven patches on the court.
For courts used in top-tier professional competitions, often referred to as Class I, the lighting system may incorporate 50 to 100 fixtures. These lights are carefully distributed to provide high levels of brightness while maintaining uniformity from all angles. The goal is to eliminate shadows and ensure every part of the court is evenly lit, which is critical in professional settings.
Class II courts, which typically include those used in college athletics and high school competitions, require fewer fixtures—generally between 8 to 16. While not as demanding as professional setups, these courts still need strong, consistent lighting to allow athletes to perform at their best.
For Class III courts, which cover recreational clubs, community centers, and residential courts, the number of fixtures is usually limited to 4 to 8 lights. These courts aim to provide safe and comfortable play conditions rather than broadcast-quality illumination. The lower fixture count is balanced by the use of effective placement and light direction, particularly when paired with modern energy-efficient LED technology.
As the level of play increases, so too does the need for advanced lighting design, both in terms of fixture count and the quality of light delivered. Proper planning ensures that each court, regardless of classification, delivers a lighting experience aligned with its purpose and performance expectations.
Fixture Count for Tennis Clubs

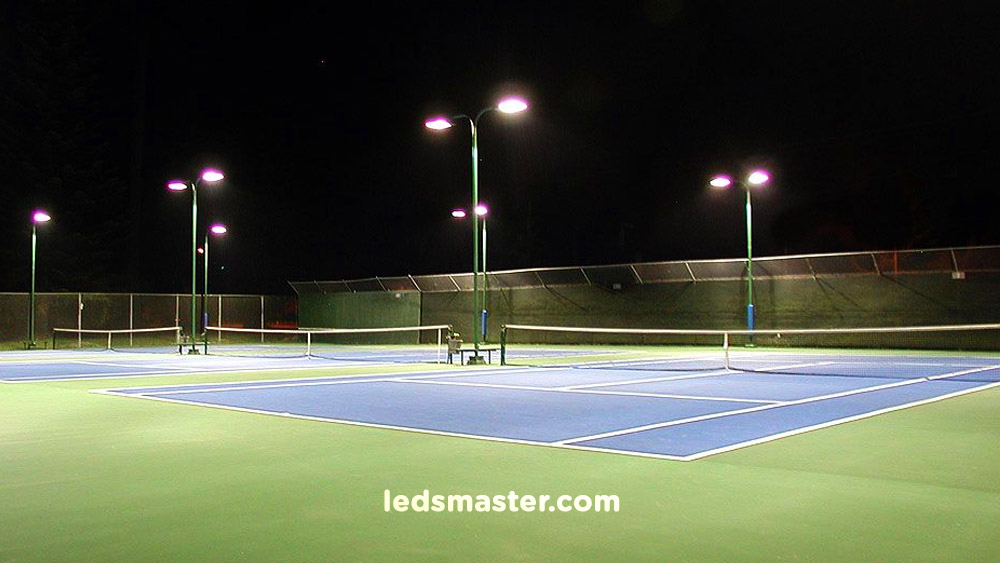

Standard Pole Layouts and Light Distribution
In most tennis clubs, the lighting design follows a six-pole configuration, offering a balanced and practical setup for single courts. These poles are typically placed around the court’s perimeter to achieve even and uniform illumination. Depending on the design preferences and performance goals, each pole may support either one or two fixtures, which creates flexibility in the overall number of lights needed.
When clubs opt for one fixture per pole, the result is a relatively modest setup of six lights per court. This arrangement can be adequate for casual or recreational play, particularly if high-efficiency LED fixtures are used. However, many clubs—especially those that host tournaments or evening matches—choose to install two fixtures per pole, bringing the total to twelve lights per court. This enhanced configuration provides stronger, more consistent lighting across the entire playing surface and helps to minimize shadows and dark zones, which can otherwise affect gameplay.
The specific layout and spacing of these poles are crucial for reducing glare and directing light only where needed. Clubs often work with lighting designers to ensure that each pole is optimally positioned to maximize court visibility without light spillage, especially in outdoor settings where surrounding areas must be considered.

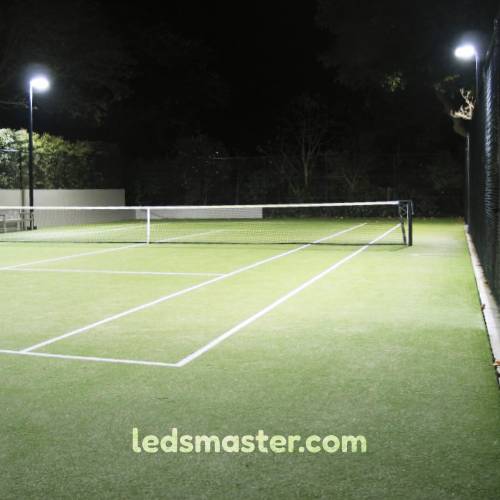

Wattage and Fixture Selection
Another key factor influencing lighting performance is the wattage of each fixture, which typically ranges from 200 to 500 watts in tennis club installations. Higher wattage lights are more common in outdoor or tournament courts, where greater brightness is required to compensate for low ambient light or to meet elevated lux targets for competitive play.
For example, a tennis club that operates at night or hosts semi-professional events may prefer to use fixtures in the 400–500 watt range, ensuring brighter and more intense light output. On the other hand, indoor clubs or facilities primarily used during the day might be adequately served by lower wattage fixtures, especially when combined with reflective indoor surfaces that help amplify and distribute light more efficiently.
Choosing the right wattage involves a balance between energy consumption, fixture cost, and lighting performance. The ultimate goal is to provide even coverage with minimal glare, supporting both player visibility and spectator comfort. Many clubs now use LED fixtures with precision optics, which allow for more targeted light distribution while consuming less energy than traditional metal halide systems. This makes them a popular choice for clubs seeking cost-effective and environmentally conscious solutions.
High School Tennis Court Lighting Needs
Lux Requirements for School-Level Competition
High school tennis courts, categorized as Class II facilities, are held to a higher lighting standard than those used purely for recreation. Because these courts host both practice sessions and formal interscholastic competitions, they must provide reliable, bright, and uniform illumination that supports serious athletic performance.
The target lux range for high school play typically falls between 500 and 750 lux, depending on whether the court is used primarily for practice or for hosting competitive matches. This level of brightness allows players to track the ball accurately, move with confidence, and maintain focus even during fast-paced exchanges under varying weather or time-of-day conditions. The elevated lux requirement also accommodates spectators and officials, ensuring that everyone involved can clearly see the action on the court.
Lighting that meets this standard must be carefully designed to reduce glare, limit uneven light distribution, and prevent fatigue or distraction for both players and viewers. Achieving these lux levels often requires a higher number of fixtures and a more strategic layout than what is found in Class III recreational environments.
Typical Lighting Configurations
The lighting design for a high school tennis court often includes between 8 and 16 high-performance LED fixtures per court. These are typically arranged using either a four-pole or six-pole layout, depending on the available space, court orientation, and the number of adjacent courts being illuminated. LED lights are preferred because they offer high brightness with lower energy consumption and longer lifespan compared to older technologies.
In many cases, each pole may support up to four LED lights, particularly in facilities aiming for the higher end of the lux spectrum. A six-pole configuration, with four lights on each pole, can support up to 24 fixtures, although this setup is often used to illuminate multiple courts simultaneously, rather than a single surface. Sharing lighting infrastructure between adjacent courts can be a cost-effective and efficient solution, provided that the light distribution is even and tailored to avoid spillover or hotspots.
The success of this setup depends not just on quantity but on strategic positioning. Poles are typically placed outside the court boundaries, at specific angles, to ensure minimal shadowing and maximum coverage. Proper aiming and beam control help to maintain uniform brightness across the playing area, so that players are not disadvantaged by dim corners or harsh contrasts.
By combining smart pole layouts, appropriate lux levels, and high-efficiency fixtures, schools can create well-lit courts that support both competition and training, enhancing the athletic experience for student players and improving safety during extended hours of use.

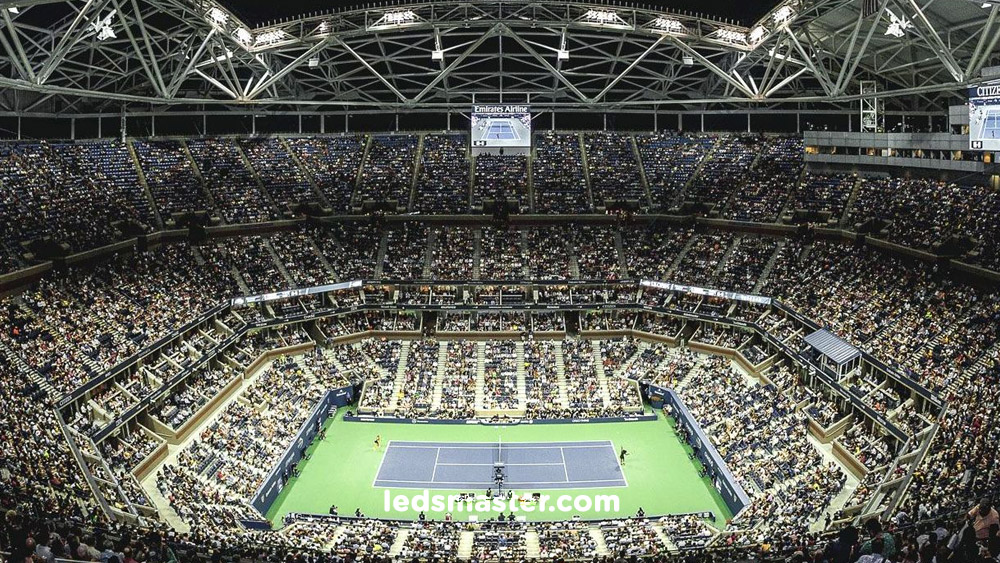

Lighting Design for Tennis Stadiums and Arenas
High Lux Standards for Broadcast and Spectator Visibility
Tennis stadiums and professional arenas, designated as Class I facilities, require a significantly more advanced lighting setup than recreational or school-level courts. These venues often host international tournaments, televised matches, and large spectator crowds, making high-performance lighting a central component of the venue’s infrastructure.
To meet these elevated demands, tennis stadiums are typically designed to deliver between 1000 and 1500 lux across the entire playing surface. These lux levels are not only suitable for the speed and precision of professional play, but they are also calibrated to support broadcast-quality video standards, ensuring that cameras can capture the game in sharp, consistent detail without motion blur or shadowing.
For players, this level of brightness provides the visibility needed to track high-speed serves, volleys, and groundstrokes under intense match conditions. For spectators, both in-stadium and at home, high-lux lighting enhances the viewing experience by improving clarity and maintaining visual balance throughout the match, regardless of seating angle or time of day.
Fixture Count and Roof Installation Strategies
To achieve such high lux values, a large number of lighting fixtures—typically between 50 and 100—must be installed. These are often mounted along the roof structure of the stadium, or on elevated poles that surround the court at calculated distances and angles. The goal is to provide comprehensive coverage from multiple directions, which is essential to eliminate dark patches and disruptive shadows on the playing surface.
Each fixture must be precisely aimed and configured, often using custom beam angles and shielding elements, to control light direction and intensity. By using multi-angle installations, lighting designers can ensure that every inch of the court is lit evenly, helping to reduce player fatigue and visual strain, while also enhancing officiating accuracy and the quality of the broadcast feed.
In addition to brightness, uniformity is a major performance metric in stadium lighting design. Even small variations in lighting across the surface can affect player perception and camera exposure, especially in matches played at night or under varied weather conditions. High-end LED fixtures with advanced optical lenses are now the preferred choice in many stadiums, offering greater control, energy efficiency, and longer operational life than older systems such as metal halide.
Enhanced Spectator and Broadcast Experience
The impact of well-designed stadium lighting extends beyond the court. Spectator experience is significantly improved when the lighting allows every seat in the stadium to enjoy clear, unobstructed views of the match, without glare or distracting hotspots. This is especially relevant for larger arenas, where fans seated farther from the court depend on consistent lighting to follow the flow of play.
Moreover, modern tennis stadiums are increasingly built with broadcasting in mind. High-lux, color-accurate lighting ensures that television cameras and live-streaming equipment can deliver crisp, vivid footage across various platforms. This level of consistency is now a standard expectation for professional venues and contributes heavily to the commercial and promotional value of televised matches.
The combination of high lux levels, strategic fixture placement, and broadcast-ready illumination transforms a tennis stadium into a professional-grade environment that serves the needs of players, spectators, and media crews alike.
Differences Between Indoor and Outdoor Tennis Court Lighting
Outdoor Courts Require Greater Illumination
Outdoor tennis courts typically need a more robust lighting setup due to the unpredictable nature of environmental lighting conditions. Natural sunlight is not always reliable—clouds, tree shadows, and the changing position of the sun throughout the day can lead to uneven illumination. Once the sun sets, outdoor courts must rely entirely on artificial lighting, which means fixtures must be bright enough to fully replicate daylight-like visibility across the entire court.
To overcome these challenges, designers often use a higher number of fixtures, positioned carefully around the court to eliminate dark spots and reduce glare. Light poles are generally placed symmetrically on both sides, and sometimes behind the baseline, to cover the court uniformly. Because the ambient light at night is minimal or absent, each fixture needs to be powerful enough to meet the required lux levels for safe and enjoyable play. This explains why outdoor courts frequently require larger wattage lights and a higher quantity of fixtures compared to indoor setups.
Additionally, weather resistance becomes a factor. Fixtures used outdoors must be built to withstand wind, rain, humidity, and temperature fluctuations. The need for durability and consistent performance under variable weather conditions adds further complexity to the lighting design for outdoor tennis courts.
Controlled Conditions in Indoor Tennis Courts
Indoor tennis courts, by contrast, benefit from being in an enclosed, climate-controlled environment. This setting allows lighting designers to work with consistent and predictable conditions, which makes achieving uniform illumination much easier. Since natural light doesn’t interfere with artificial lighting indoors, there’s no need to overcompensate for shifting daylight or outdoor shadows.
With fewer environmental variables, designers can focus on creating a lighting system that delivers precise light levels using fewer fixtures. Typically, indoor courts require lower-wattage lights since the space is smaller and more contained. Light containment is significantly better indoors, which means fewer lumens are lost to the surroundings, and the entire energy output contributes directly to court illumination.
Another advantage of indoor lighting systems is the ability to use advanced controls, such as dimmers or motion sensors, to fine-tune brightness levels depending on usage. Indoor venues often adopt LED fixtures with adjustable beam angles, allowing for focused lighting where needed while avoiding glare and hot spots. The result is a comfortable, consistent, and energy-efficient lighting experience that’s ideal for both casual games and competitive matches.
Choosing the Right Lighting Setup
Several factors influence how many lights are necessary for a specific tennis court project. The location of the court (indoor vs. outdoor), the level of competition, the pole arrangement, and the type of lighting technology all contribute to the final design. Whether illuminating a community club or a professional venue, careful planning ensures the lighting system delivers both performance and visual comfort.
If you’re considering a tennis court lighting upgrade or building a new facility, you can consult with specialists to explore layout options, light placement, and energy-efficient solutions. Proper lighting supports not only gameplay but also safety, enjoyment, and long-term functionality.
